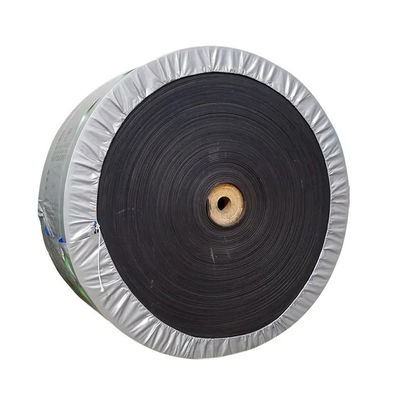

Black Steel cord conveyor belt ST800 Wire Rope Conveyor Belt

Steel cord conveyor belt is a type of rubber conveyor belt reinforced with steel cord as its tensile member. It features high tensile strength, excellent impact resistance, long service life, low elongation, superior troughability and outstanding flex resistance. It is designed for long-distance, large-volume and high-speed material conveying. The conveyor belt consists of core rubber, steel cords, top and bottom covers, and edge rubber.

Steel cord conveyor belts are suitable for material conveying in coal mines, mines, ports, power plants, metallurgy, building materials and other industries requiring tear-resistant performance. They are applicable to long-distance, large-span, large-capacity and high-speed material transportation.

There are many forms of damage to the wire rope conveyor belt, mainly:

• Serious wear on the rubber surface
• Ripped edges
• Tearing

Among these, conveyor belt tearing is the most harmful form of damage. It mainly refers to the longitudinal tearing of the conveyor belt caused by sharp impurities in the conveying material being inserted into the conveyor belt or the steel wire in the conveyor belt being drawn out. Although tearing is an accidental damage, it is very destructive. If not controlled in time, it can cause the entire conveyor belt to tear, resulting in production shutdown and significant direct and indirect economic losses.

By Structure:

• Ordinary type
• Impact-resistant and tear-resistant type

By Purpose:

• Ordinary types
• Wear resistance types
• Heat resistance types
• Cold resistance types
• Acid and alkali resistance types
• Flame retardancy types
• Tear resistance types
• Flame resistance types
• Ozone resistance types

The strength is higher than that of ordinary conveyor belts, and the length is longer, which can reduce the number of transfer points and save power and management costs.
